VRV Home

Open doors to an incredible air conditioning solution for your home by Dakin – VRV Home, that replaces multiple outdoor units of your house with a single.

Get Quote

Open doors to an incredible air conditioning solution for your home by Dakin – VRV Home, that replaces multiple outdoor units of your house with a single outdoor unit. From its quiet and efficient Swing Compressor to unmatched Design Flexibility, and best-in-class Comfort, it lets you experience the style, power and flexibility of the Daikin’s next-gen air conditioning system.

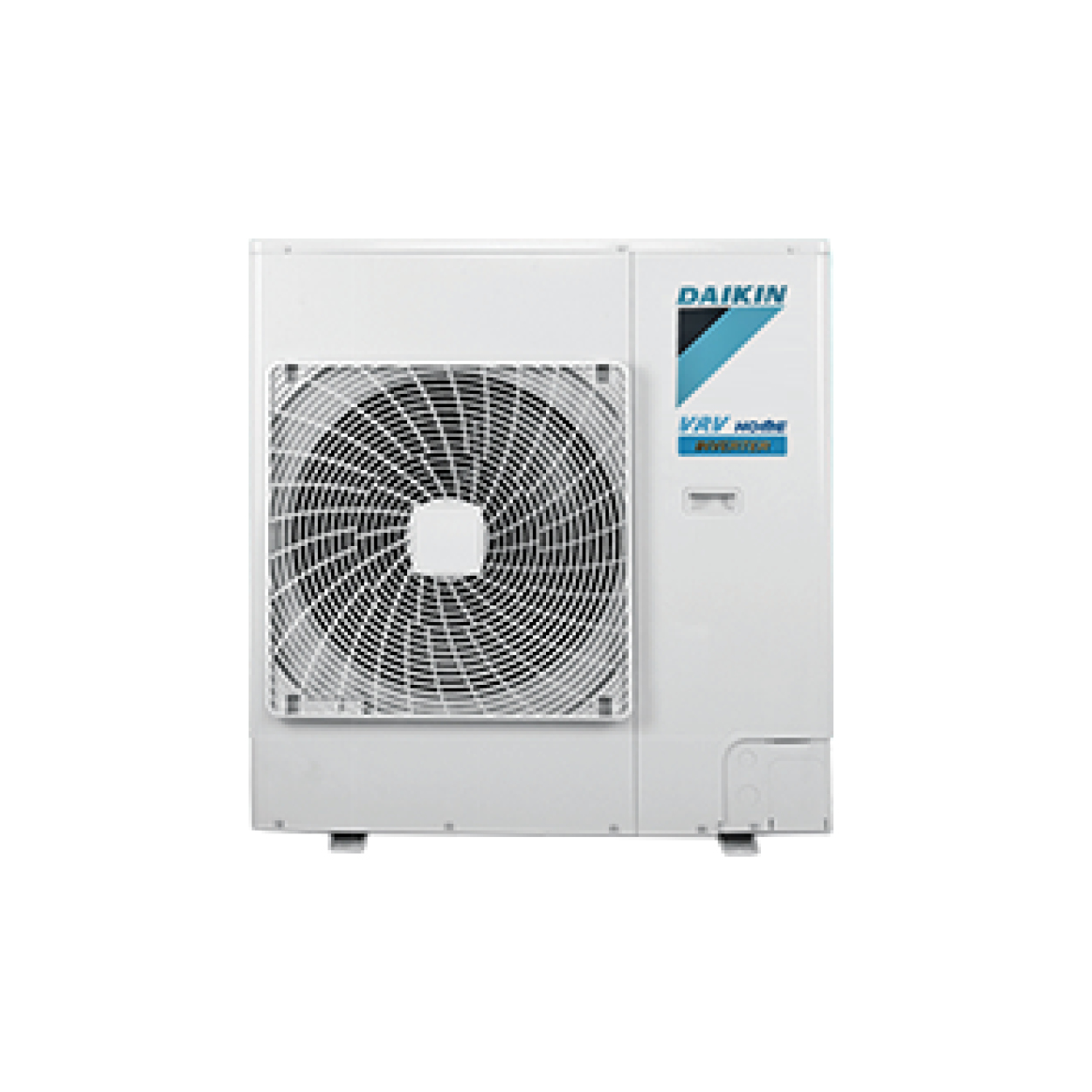

VRN OUTDOOR UNIT

An apartment or a house that does not have sufficient space will find difficult to accommodate numerous outdoor units. Even if the outdoor units are somehow crowded together they will consume a lot of space, look cluttered and ruin the aesthetics of the house.

VRV Home replaces all the outdoor units of the house with just one outdoor unit. A total of 8 indoor units can be connected to one outdoor unit to create the space you have always desired. Also you have different styles of indoor units like duct type and hi-wall that can be connected with a single outdoor unit. Furthermore, actual piping length of up to 40 meters coverage of widespread spaces is ensured.

The trunk-shaped outdoor unit can be easily be installed on a balcony, realizing complete system installation within each floor. While the compact outdoor unit can be hanged on the wall eliminating need for floor space, which enables more useful utilisation of the space on the building rooftop.

Outdoor unit can be selected from six models to provide the power that suits your needs. The trunk-shaped outdoor unit can be neatly installed outside.

It can also be hanged on the wall, consequently, eliminating the need for floor space. This enables a more useful utilization of the space on the building rooftop.

Heat Pump Series Model Name RXYRQ4ARV16 RXYRQ5ARV16 RXYRQ6ARV16 Capacity Range 4 HP (11.2 kW) 5 HP (14.0 kW) 6 HP (16 kW) Cooling Only Series Model Name RXRQ4ARV16 RXRQ5ARV16 RXRQ6ARV16 Capacity Range 4 HP (11.2 kW) 5 HP (14.0 kW) 6 HP (16 kW)

VRV OUTDOOR UNIT

Slim design, quietness and static pressure switching

Suited to use in Drop-Ceilings

FXDRQ20PD / FXDRQ25PD / FXDRQ32PD

Only 700 mm in width and 23 kg in weight, this model is suitable for installation in limited spaces like drop-ceilings.

FXDRQ4OND / FXDRQ5OND / FXDRQ63ND

Only 200 mm in height, this model can be installed in rooms with as little as 240 mm depth between the drop-ceiling and ceiling slab.

Mid Static Pressure Ceiling

FXMRQ40A / FXMRQ50A / FXMRQ63A FXMRQ80A / FXMRQ100A

Mid static pressure allows for flexible duct design all models are only 300 mm in height, an improvement over the 390 mm height of conventional models. The weight of the FXMRQ40A has been reduced from 44 kg to 28 kg. The drain pan can be detached for easy cleaning. An antibacterial treatment that uses silver ions has been applied to the drain pan, preventing the growth of slime, mould and bacteria that cause blockages and odours. Drain pump is equipped as standard accessory with 700 mm lift.

Wall Mounted Type

FXARQ20A / FXARQ25A / FXARQ32P / FXARQ4OP / FXARQ5OP / FXARQ63P

Stylish flat panel design harmonised with your interior decor

Product category:VRV Air Conditioner, VRV Home

Slim Ceiling Mounted Duct Type (700 mm width type) MODEL WITH DRAIN PUMP   FXDRQ20PDV36 FXDRQ25PDV36 FXDRQ32PDV36 Power supply   1-phase, 220V / 240V, 50 Hz Cooling capacity Btu/h
kW 7500
2.2 9600
2.8 12300
3.6 Heating capacity Btu/h
kW 8500
2.5 10900
3.2 13600
4 Casing     Galvanised steel plate   Airflow rate (HH/H/L) m3/min
cfm 8.0/7.2/6.4
282/254/226 8.0/7.2/6.4
282/254/226 8.0/7.2/6.4
282/254/226 External static pressure Pa 30-10 *2 Sound level (HH/H/L)*1 *3 dB(A) 33/31/29 33/31/29 33/31/29 Dimensions (HxWxD) mm 200x700x620 200x700x620 200x700x620 Machine weight kg 23 23 23 Piping connections Liquid (Flare)
Gas (Flare)
Drain mm 6.4
12.7 6.4
12.7 6.4
12.7       VP20 (External Dia, 26/Internal Dia, 20)

Slim Ceiling Mounted Duct Type (900/1,100 mm width type)

MODEL WITH DRAIN PUMP FXDRQ4ONDV36 FXDRQ5ONDV36 FXDRQ63NDV36
Power supply 1-phase, 220V / 240V, 50 Hz
Cooling capacity Btu/h
kW		 15400
4.5		 19100
5.6		 24200
7.1
Heating capacity Btu/h
kW		 17100
5		 21500
6.3		 27300
8
Casing     Galvanised steel plate
Airflow rate (HH/H/L) m3/min
cfm		 10.5/9.5/8.5
371/335/300		 12.5/11.0/10.0
441/388/353		 16.5/14.5.13.0
583/512/459
External static pressure Pa 40-15*2
Sound level (HH/H/L)*1 *3 dB(A) 34/32/30 35/33/31 36/34/32
Dimensions (HxWxD) mm 200x900x620 200x900x620 200×1,100×620
Machine weight kg 27 28 31
Piping connections Liquid (Flare)
Gas (Flare)
Drain		 mm 6.4
12.7		 6.4
12.7		 9.5
15.9
      VP20 (External Dia, 26/Internal Dia, 20)

Specifications are based on the following conditions:

  • Cooling: Indoor temp.: 27 DB, 19 WB, Outdoor temp.: 35 DB, Equivalent piping length: 7.5 m, Level difference: 0 m.
  • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index.
  • Heating: Indoor temp.: 20 DB, Outdoor temp.: 7 DB, 6 WB, Equivalent piping length: 7.5 m, Level difference: 0 m.
  • Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre.

During actual operation, these values are normally somewhat higher as a result of ambient conditions.

  • Values are based on the following conditions: FXDRQ-PD: external static pressure of 10 Pa; FXDRQ-ND: external static pressure of 15 Pa.
  • External static pressure is changeable to set by the remote controller. This pressure means “High static pressure – Standard” (Factory setting is 10 Pa for FXDRQ-PD models and 15 Pa for FXDRQ-ND models.)
  • The values of operation sound level represent those for rear-suction operation. Sound level values for bottom-suction operation can be obtained by adding 5 dB(A).

    • Mid Static Pressure Ceiling Mounted Duct Type

    MODEL WITH DRAIN PUMP FXMRQ40ARV16 FXMRQ50ARV16 FXMRQ63ARV16 FXMRQ80ARV16 FXMRQ100ARV16
    Power supply 1-phase, 220V / 240V 50 Hz
    Cooling capacity Btu/h
    kW    		 15,400
    4.5    		 19,100
    5.6    		 24,200
    7.1    		 30,700
    9.0    		 38,200
    11.2
    Heating capacity Btu/h
    kW    		 15,400
    4.5    		 19,100
    5.6    		 24,200
    7.1    		 30,700
    9.0    		 38,200
    11.2
    Casing       Galvanised steel plate
    Airflow rate (H/L) m3/min
    cfm    		 15/12
    530/425    		 19/16
    671/565    		 24/20
    848/706    		 30/25
    1060/883    		 34/29
    1200/1024
    External static pressure Pa 30-50 30-50 30-50 30-50 30-50
    Sound level (H/L) dB(A) 39/37 41/39 42/40 43/41 33/44/42
    Dimensions (H xWx D) mm 300x700x700 300x700x700 300x1000x700 300x1000x700 300x1000x700
    Machine weight kg 27 28 35 35 36
    Piping
    connections    		 Liquid (Flare) Gas (Flare) Drain mm 6.4
    12.7    		 6.4
    12.7    		 9.5
    15.9    		 9.5
    15.9    		 9.5
    15.9
    VP25 (External Dia, 32/Internal Dia 25)

    Specifications are based on the following conditions:

    • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Level difference: 0 m.
    • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CDB Equivalent piping length: 7.5 m, Level difference: 0 m.
    • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index.
    • Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre.

    Wall Mounted Type

    MODEL FXARQ20ARVE6 FXARQ25ARVE6 FXARQ32ARVE6 FXARQ40ARVE6 FXARQ50ARVE6 FXARQ63ARVE6
    Power supply 1-phase, 220V / 240V 50 Hz
    Cooling capacity Btu/h
    kW    		 7,500
    2.2    		 9,600
    2.8    		 12,300
    3.6    		 15,400
    4.5    		 19,100
    5.6    		 24,200
    7.1
    Heating capacity Btu/h
    kW    		 8,500
    2.5    		 10,900
    3.2    		 13,600
    4.0    		 17,100
    5.0    		 21,500
    6.3    		 27,300
    8.0
    Casing       White (N9.5)
    Airflow rate (H/L) m3/min
    cfm    		 7.5/4.5
    265/159    		 9/5
    318/177    		 11/5.5
    388/194    		 13/9
    459/318    		 15/12
    530/424    		 19/14
    671/494
    Sound level (H/L) dB(A) 35/31 36/31 38/31 39/34 42/37 47/41
    Dimensions (H xWx D) mm 298X929X258 298X929X258 298X929X258 298X929X258 298X929X258 298X929X258
    Machine weight kg 13.0 13.0 13.0 13.0 13.0 13.0
    Piping
    connections    		 Liquid (Flare) Gas (Flare) Drain mm 6.4
    12.7    		 6.4
    12.7    		 6.4
    12.7    		 6.4
    12.7    		 6.4
    12.7    		 9.4
    15.9
    VP13 (External Dia, 18/Internal Dia 13)

    VRV OUTDOOR UNIT

    Model Cooling only Heat Pump
    RXRQ4ARV16 RXRQ5ARV16 RXRQ6ARV16 RXYRQ4ARV16 RXYRQ5ARV16 RXYRQ6ARV16
    Power Supply 220-240V & 50Hz, 1 Phase 220-240V & 50Hz, 1 Phase
    Cooling Capacity(kW) 11.2 14.0 16.0 11.2 14.0 16.0
    Heating Capacity(kW) – – – 11.2 14.0 16.0
    Casing Color Ivory White Ivory White
    Dimension (H*W*D) 990*940*320 990*940*320
    Heat Exchanger Cross Fin Coil(multi slit) Cross Fin Coil(multi slit)
    Fan
    Type Propeller Fan X1 Propeller Fan X1
    Motor Output(W) 200 200
    Air Flow Rate (m3/min) 76 76
    Drive Direct Drive Direct Drive
    Connecting Pipes
    Liquid Pipe(Flare Connection) 9.5 9.5
    Gas Pipe (Flare Connection) 15.9 15.9
    Max actual pipe length (m) 40 40
    Total Pipe length (m) 100 100
    Weight (kg) 72 72 79 73 73 82
    Sound pressure level dB(A) 52 54 55 52 54 55
    Capacity control(%) 24-100 16-100 24-100 16-100
    Combination ratio(%) 50-140%
    Temp range Cooling(CDB) 0 to 49 0 to 49
    Temp range Heating(CDB) NA 0 to 20
    Refrigerant Type R410A R410A R410A R410A R410A R410A
    Compressor Type Hermetically Sealed Swing Type
